Download Datasheet TD-1104D
Download Hướng dẫn sử dụng TD-1104
Decoder hiển thị 4 màn hình TD-1104D hãng TVT
0đ
Đặc điểm nổi bật
BỘ DECODER HIỂN THỊ 4 MÀN HÌNH TD-1104D
- HDMI1 and HDMI3 support 4K; HDMI2 and HDMI4 support 1080p
- 4*VGA output 1920×1080/1280×1024 , 4*BNC output CVBS
- Chế độ chia: 1/4/9/16/25/36, hiển thị tối đa 128CH
- Interface: Audio in × 1, audio out × 1, support two-way talk; RJ 45 × 2, load balancing, Alarm in × 8, alarm out × 8; USB3.0 × 1, USB2.0 × 2; RS 485×1, RS232×1
- Compression: H.265 HP/MP/BP, H.264 HP/MP/BP
- HDMI1 and HDMI3 support 4K; HDMI2 and HDMI4 support 1080p
- 4*VGA output 1920×1080/1280×1024 , 4*BNC output CVBS
- Chế độ chia: 1/4/9/16/25/36, hiển thị tối đa 128CH
- Interface: Audio in × 1, audio out × 1, support two-way talk; RJ 45 × 2, load balancing, Alarm in × 8, alarm out × 8; USB3.0 × 1, USB2.0 × 2; RS 485×1, RS232×1
- Compression: H.265 HP/MP/BP, H.264 HP/MP/BP
Cam kết
giá tốt nhất
Nhận đổi trả
trong 30 ngày
Giao hàng
toàn quốc
Thanh toán
khi nhận hàng
Sản phẩm tương tự
-
0đ
Còn hàng
-
0đ
Còn hàng
-
0đ
Còn hàng
-
0đ
Còn hàng
-
0đ
Còn hàng
-
0đ
Còn hàng
BỘ DECODER HIỂN THỊ 4 MÀN HÌNH TD-1104D
-
Features
- Decoding & Display
- - 4*HDMI@1080P; HDMI1 and HDMI3 support 4K
- - 4*VGA output, 4*BNC output
- - Supports PS, RTP, TS, ES encapsulation formats (inplatform running mode)
- - Supports NTSC & PAL video formats
- - H.265 HP/MP/BP and H.264 HP/MP/BP
- - 8CH 8MP/5MP@30fps or 16CH 4MP/3MP or 32CH 1080P@30fps or 64CH 720P@30fps or 128 CH D1 or lower @30fps
- - G.711A/G.711U audio compression
- - 1CH audio input; 4CH audio output
- - 1CH two-way audio
- Stream Mode
- - A&V streams can be acquired actively and passively
- - A&V streams can be directly acquired from TVT IPC/DVR/NVR by SDK private protocol
- - A&V streams can be acquired form NVMS platform or encoding devices by RTSP/ RTP protocol
- - A&V streams can be acquired from IPC by ONVIF protocol Device Management
- - Supports multi-level device control (master-slave mode)
- - A maximum of 64 decoders can be manageable
- Decoding Control
- - Supports live view and playback decoding
- - 1/4/9/16/25/36 screen display mode
- - Window opening, roaming
- - View cameras or camera groups in sequence
- Access
- - Provides HTTP API protocol for the third-party
- - Supports platform running mode and device running mode
- Operation and Maintenance
- - Supports device search
- - Supports WEB client access, configuration and management
- - Supports time zone, time and date settings
- - Supports data port and HTTP port settings
- - Supports data backup and restoration
- - Supports remote reboot and one-button reset
- - Supports online and U-disk upgrade
- - Supports dual gigabit Ethernet ports, load balancing
Thông số kỹ thuật chi tiết:
| OS | Embedded Linux |
| Compression Format | H.265 HP/MP/BP, H.264 HP/MP/BP |
| Video Input | HDMI×1:1920×1080 / 1600×1200/1680×1050/1440×900/1400×1050/ 1366×768/1280×1024/ |
| 1280×960/1280×800/1280×720/1152×864/ 1024×768/800×600 | |
| Video Output | HDMI×4:3840×2160(odd number ports supported) /1920×1080/1280×1024VGA×4:1920×1080/1280×1024; |
| BNC×4:CVBS output | |
| Frame Rate | 1-50fps/CH (PAL), 1-60fps/CH (NTSC) |
| Decoding Resolution | 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, WD1, D1, CIF |
| Decoding Capability | 8CH 8MP/5MP@30fps or 16CH 4MP/3MP or 32CH 1080P@30fps or 64CH 720P@30fps or 128 CH D1 or lower @30fps |
| Screen Display Mode | 1/4/9/16/25/36 |
| Screen Splicing Mode | 1×2, 2×1, 2×2 |
| Audio Output | RCA×4 |
| Talkback | Audio input×1, audio output×1, 3.5mm audio interface (level: 2.0Vp -p, 1KΩ) |
| Network Interface | Gigabit Ethernet × 2, load balancing and hot standby |
| Alarm Interface | Alarm input×8, alarm output×8 |
| Serial Ports | RS 485×1, RS232×1 |
| USB Interface | USB3.0×1, USB2.0×1 |
| Power Consumption | DC12V |

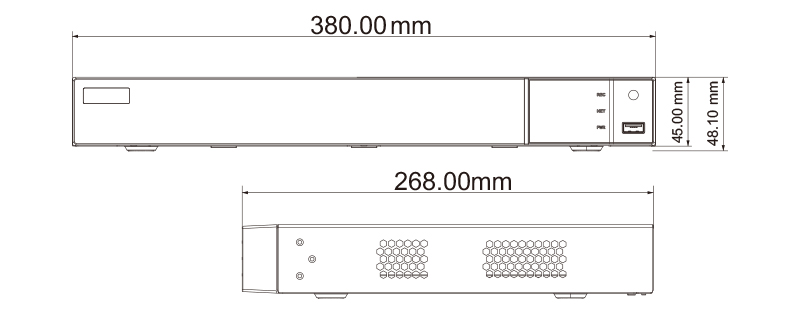

| Dimensions(mm) | 380(W)×268(D)×45(H) |
| Weight | 2KG |
| Working Environment | Temperature:-20°C~50°C; RH Humidity: 5%~95%(non-condensing) |
